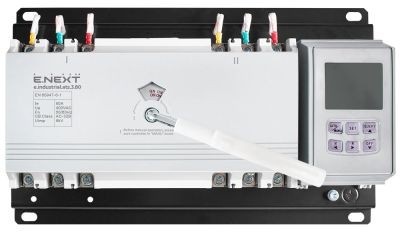

Automatic transfer switch (ATS) e.industrial.ats.3.80, 3P, 80 A, E.NEXT
Price excl. tax:
€505.00
Price inc. tax:
€606.00
-
Code:i088013
The automatic backup power supply device (ATS) E.NEXT e.industrial.ats.3.80 is a three-pole automatic switch with a rated current of 80 A, designed to provide backup power supply in the event of a failure or deviation in the parameters of the main source. It automatically switches the electrical load between two independent power sources, with the main input having priority.

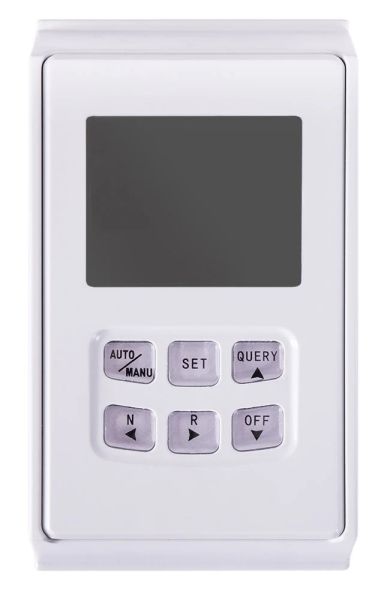

The model supports automatic and manual control modes with three switching positions I–0–II. The built-in controller monitors the supply voltage and allows setting the upper and lower thresholds, as well as the switch-on delay time. The device provides control of overvoltage, undervoltage and phase loss, as well as overload and short circuit protection.
Control signals are provided for starting a generator, interaction with a fire alarm system and external signaling. The possibility of additional DC power supply of the controller and the mechanical position indicator facilitate the integration and monitoring of the device in power distribution systems, industrial installations and sites requiring backup power.
The model supports automatic and manual control modes with three switching positions I–0–II. The built-in controller monitors the supply voltage and allows setting the upper and lower thresholds, as well as the switch-on delay time. The device provides control of overvoltage, undervoltage and phase loss, as well as overload and short circuit protection.
Control signals are provided for starting a generator, interaction with a fire alarm system and external signaling. The possibility of additional DC power supply of the controller and the mechanical position indicator facilitate the integration and monitoring of the device in power distribution systems, industrial installations and sites requiring backup power.
Estimated Shipping
outside Varna starts at
€15.00
to Varna starts at
€15.00
to Varna starts at
€6.26
outside Varna starts at
€6.41
Quick Buy
Just 4 fields to fill in
Technical characteristics
| Parameter | Value |
|---|---|
| Manufacturer | E.NEXT |
| Series | e.industrial.ats |
| Model | e.industrial.ats.3.80 |
| Item code | i088013 |
| Device type | Automatic Transfer Switch (ATS) |
| Number of poles | 3P |
| Number of power inputs | 2, with input 1 priority |
| Rated current (In) | 80 A |
| Rated operating voltage (Un) | 400V AC |
| Current type | Variable (AC) |
| Nominal frequency | 50/60Hz |
| Controller supply voltage (L–N) | 150–300 V AC |
| Additional power supply to the controller | 15–30V DC |
| Power consumption | ≤10W |
| Rated insulation voltage (Ui) | 800V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated breaking capacity (Icu) | 50kA |
| Rated operational breaking capacity (Ics) at 400 V AC | 35kA |
| Frequency of operation of the electromagnetic switch | 12 × In |
| Security features | Overload and short circuit protection; overvoltage, undervoltage and phase loss control |
| Control modes | Automatic and manual |
| Switch positions | I–0–II |
| Source switching time | Up to 4 s (formulated by the manufacturer as a minimum time) |
| Voltage measurement range | 40–300V |
| Setting the upper voltage threshold | 240–290V |
| Setting the lower voltage threshold | 160–200V |
| Setting the power-on delay | 0–180 seconds |
| Control inputs and outputs | Generator start; interface to fire alarm system; signaling; backup power supply to the controller 24 V DC |
| Indication | Yes |
| Position indicator | Mechanical |
| Mechanical wear resistance | Minimum 5000 cycles |
| Electrical wear resistance | Minimum 1500 cycles |
| Degree of protection | IP30, except for the connection terminals |
| Degree of contamination | 3 |
| Operating temperature | From −30 to +60 °C |
| Maximum altitude | 2000 m |
| Installation | Superficial |
| Working position | Vertical or horizontal, with a deviation of up to 5° |
| Compliance with standards | DSTU EN 60947-6-1 |
| Warranty | 12 months |
