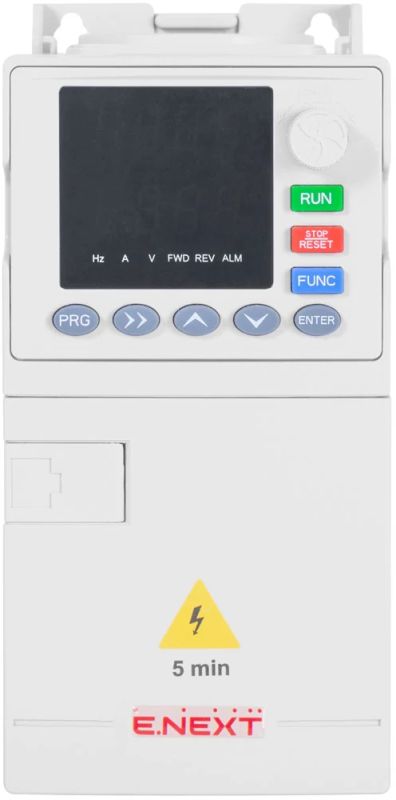

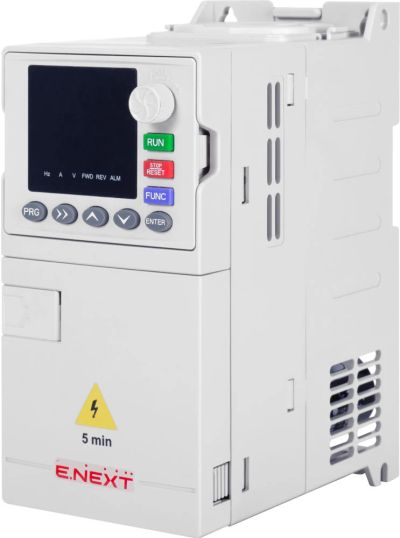

Frequency converter E.NEXT e.f-drive.stand.2R2, 2.2 kW, three-phase, 380 V, vector control
Price excl. tax:
€330.00
Price inc. tax:
€396.00
-
Code:s069007
The E.NEXT e.f-drive.stand.2R2 frequency converter with a rated power of 2.2 kW is a compact and high-performance device for speed control and control of three-phase asynchronous electric motors with a supply voltage of 380 V. It supports scalar (V/F) and sensorless vector control, which allows precise adjustment of the rotation speed in different operating modes.
The model is equipped with a digital LED display, allowing simultaneous visualization of two selected operating parameters. In addition to the standard functions for controlling electric motors, the converter offers specialized capabilities for pumping systems - PID regulator, minimum and maximum pressure control, empty pipeline filling function and the ability to turn on an additional pump.

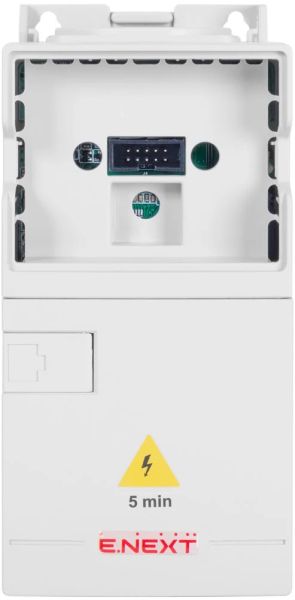

The device has five digital inputs, an analog input and output, a relay output, an open collector output, a built-in brake module and an RS485 communication interface with Modbus RTU protocol. The removable programming panel makes setup easier, and the protective lacquer coating on the electronic boards contributes to higher durability and long-term operation.
The model is equipped with a digital LED display, allowing simultaneous visualization of two selected operating parameters. In addition to the standard functions for controlling electric motors, the converter offers specialized capabilities for pumping systems - PID regulator, minimum and maximum pressure control, empty pipeline filling function and the ability to turn on an additional pump.
The device has five digital inputs, an analog input and output, a relay output, an open collector output, a built-in brake module and an RS485 communication interface with Modbus RTU protocol. The removable programming panel makes setup easier, and the protective lacquer coating on the electronic boards contributes to higher durability and long-term operation.
Estimated Shipping
outside Varna starts at
€8.62
to Varna starts at
€8.62
to Varna starts at
€3.62
outside Varna starts at
€3.77
Quick Buy
Just 4 fields to fill in
Technical characteristics
| Parameter | Value |
|---|---|
| Manufacturer | E.NEXT |
| Series | ef-drive.stand |
| Model | ef-drive.stand.2R2 |
| Item code | s069007 |
| Rated power | 2.2kW |
| Supply voltage | 3 × 380 V AC |
| Output voltage | 3 × 380 V AC |
| Voltage tolerance | −15% to +10% |
| Rated input current | 6.0A |
| Rated output current | 5.1A |
| Control modes | Scalar (V/F); sensorless vector |
| Digital inputs | 5 |
| Analog inputs | 1 (0–10V / 0–20mA) |
| Open collector output | 1 |
| Relay outputs | 1 |
| Analog outputs | 1 (0–10V / 0–20mA) |
| Carrier frequency | 2–16 kHz |
| Acceleration and deceleration time | 0–999 seconds |
| Overloading capacity | 150% for 60 s; 180% for 2 s; 200% for 0.5 s |
| Command sources | Keyboard, external terminal, digital communication |
| Brake module | Built-in |
| Communication interface | RS485, Modbus RTU |

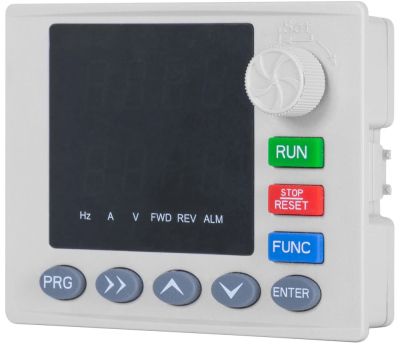

| Programming panel | Removable, included in the kit |
| Cooling | Forced |
| Degree of protection | IP20 |
| Compliance with standards | DSTU EN 61800-3, DSTU EN 61800-5-1 |
| Country of origin | China |
| Warranty | 12 months |
