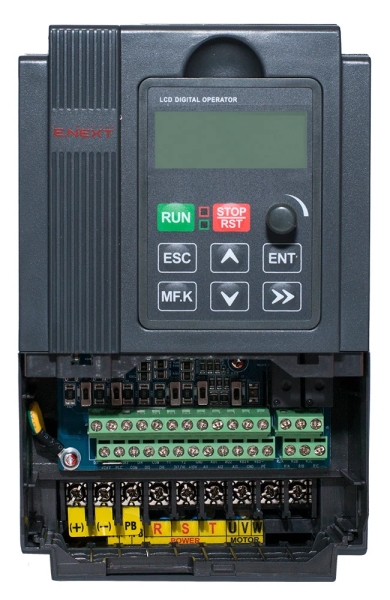

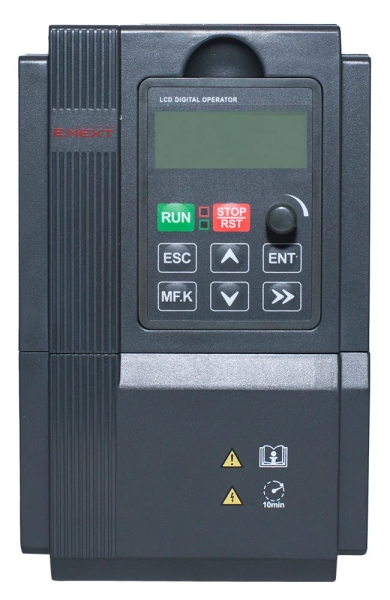

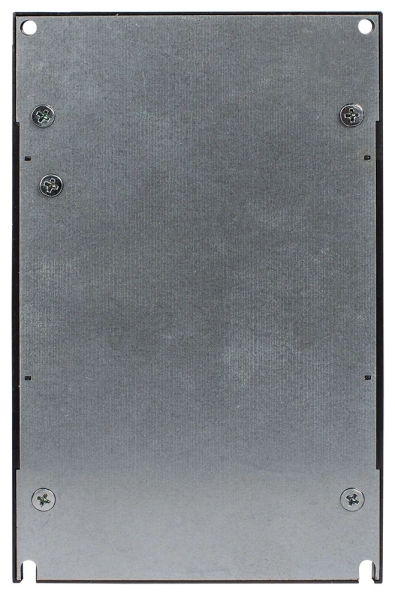

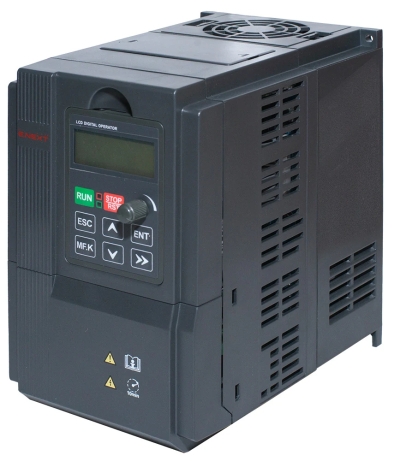

Frequency converter e.f-drive.pump.2R2, 2.2 kW, 3ph, 380 V, E.NEXT
-
Code:i0801003
Estimated Shipping
outside Varna starts at
€15.00
to Varna starts at
€15.00
to Varna starts at
€6.26
outside Varna starts at
€6.41
Quick Buy
Technical characteristics
Item: i0801003
Rated power: 2.2 kW
Degree of protection: IP20
Voltage Uin/Uout: 3×380 / 3×380 V
Input/output current: 5.8 / 5.5 A
Output frequency: 0 ~ 600 Hz
Carrier frequency: 0.7-16 kHz
Tolerances: Voltage -15% ~ + 30%; frequency ±5%
Acceleration/deceleration time: 0-6000 s
Overload capacity: 120% - 1 min; 145% - 10 s; 160% - 1 s

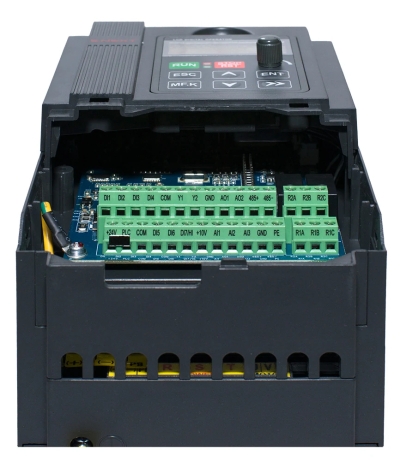

Inputs / outputs for control signals: 7 programmable digital terminals including 1 high-speed pulse terminal (up to 100kHz), 3 programmable analog inputs 0…+10V or 0…20mA, 2 programmable digital outputs with open collector including 1 high-frequency pulse output (100kHz), 2 programmable relay outputs, 2 programmable analog outputs 0…+10V or 0…20mA, RS485 (Modbus RTU)
Command source: Keyboard, external terminal, digital communication
Brake module: Built-in as standard
Digital communication: RS485 Modbus RTU

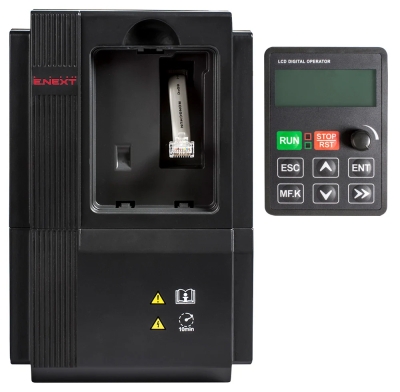

Programming panel: Included, removable

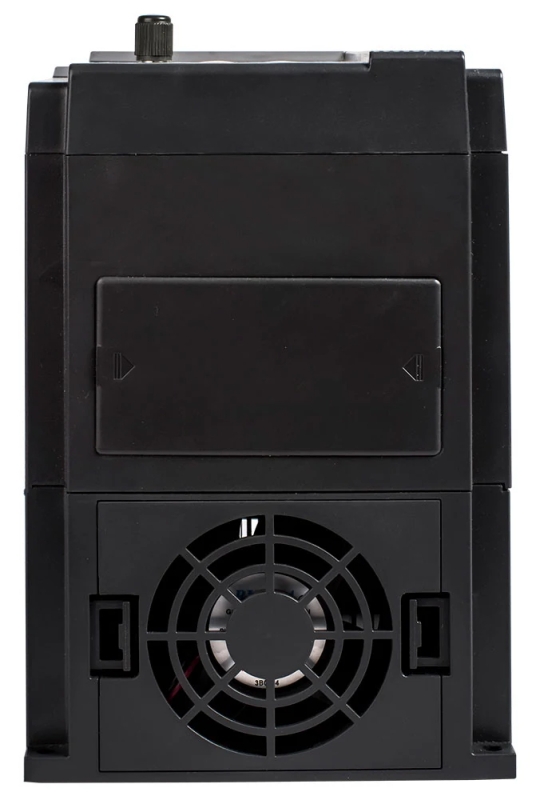

Cooling: Forced, air
Compliance with standards: DSTU EN 61800-3, DSTU EN 61800-5-1
Disposal method: Handover to a specialized company
Warranty: 12 months
