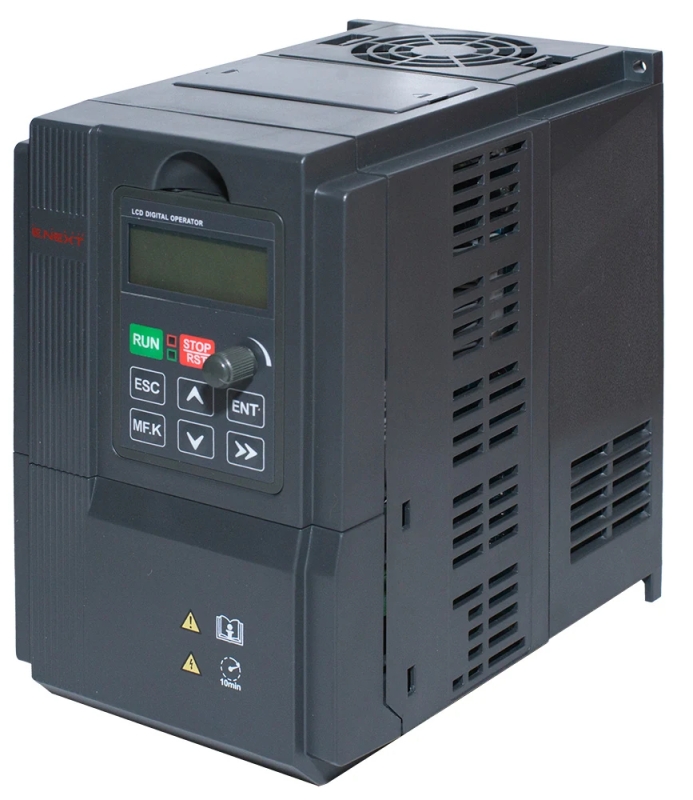

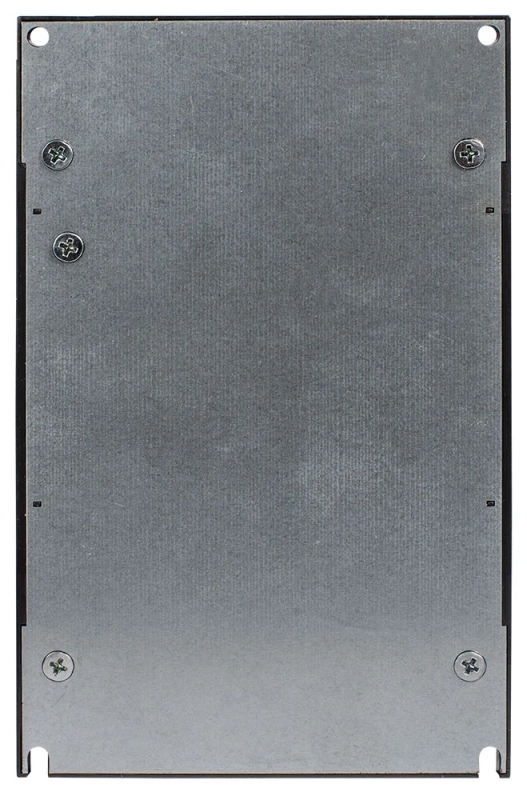

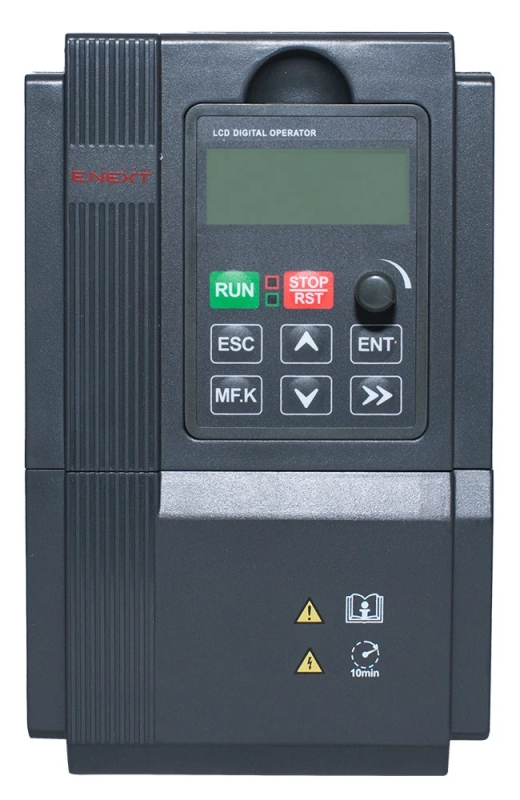

Frequency inverter e.f-drive.pump.1R5, 1.5 kW, 3-phase, 380 V, E.NEXT

Technical specifications

Article: i0801002
Rated power: 1.5 kW
Degree of protection: IP20
Input/output voltage: 3×380 / 3×380 V
Input/output current: 5 / 4.2 A
Output frequency: 0 ~ 600 Hz
Carrier frequency: 0.7-16 kHz
Permissible deviations: voltage -15%...+30%; frequency ±5%
Acceleration/deceleration time: 0-6000 s
Overload capacity: 120% - 1 min; 145% - 10 s; 160% - 1 s

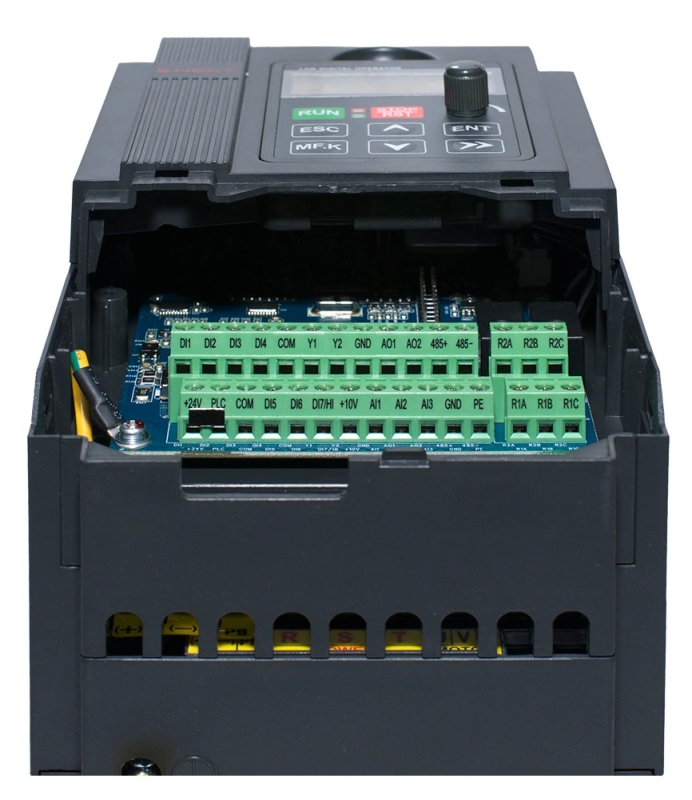

Control signal inputs/outputs: 7 programmable digital terminals including 1 high-speed pulse terminal (up to 100 kHz), 3 programmable analogue inputs 0...+10 V or 0...20 mA, 2 programmable open-collector digital outputs including 1 high-frequency pulse output (100 kHz), 2 programmable relay outputs, 2 programmable analogue outputs 0...+10 V or 0...20 mA, RS485 (Modbus RTU)
Command source: keypad, external terminal, digital communication
Braking module: integrated as standard
Digital communication: RS485 Modbus RTU

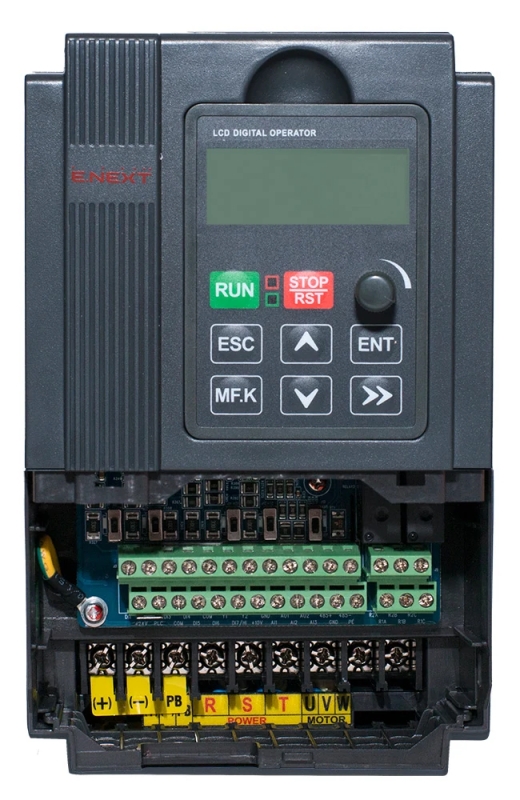

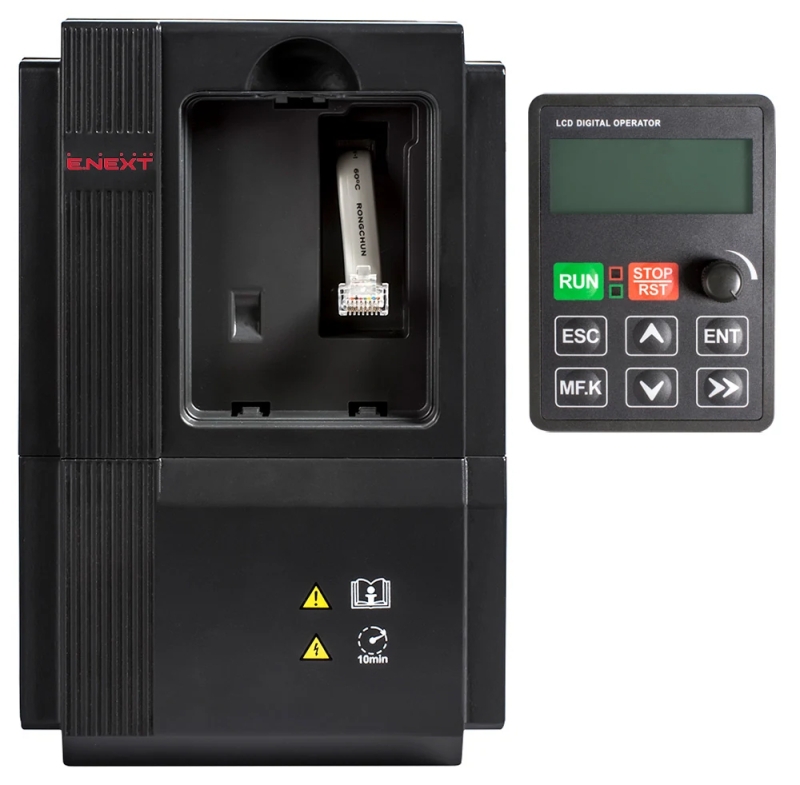

Operator panel: included, removable

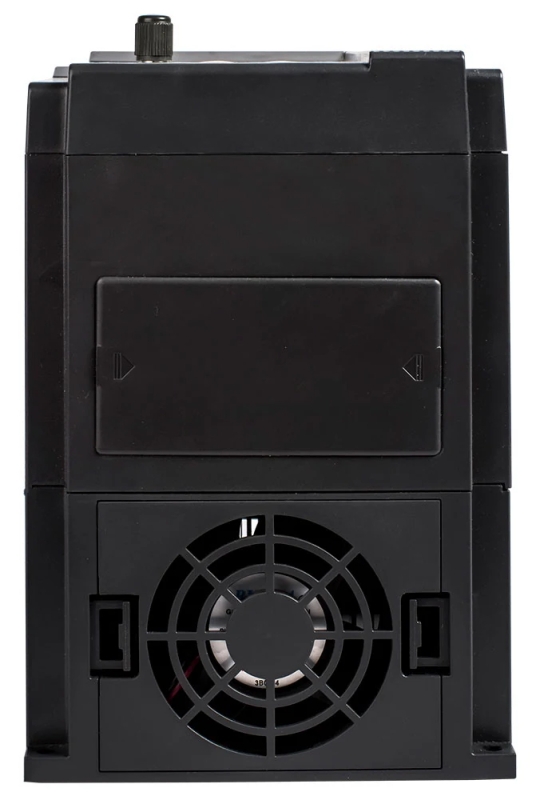

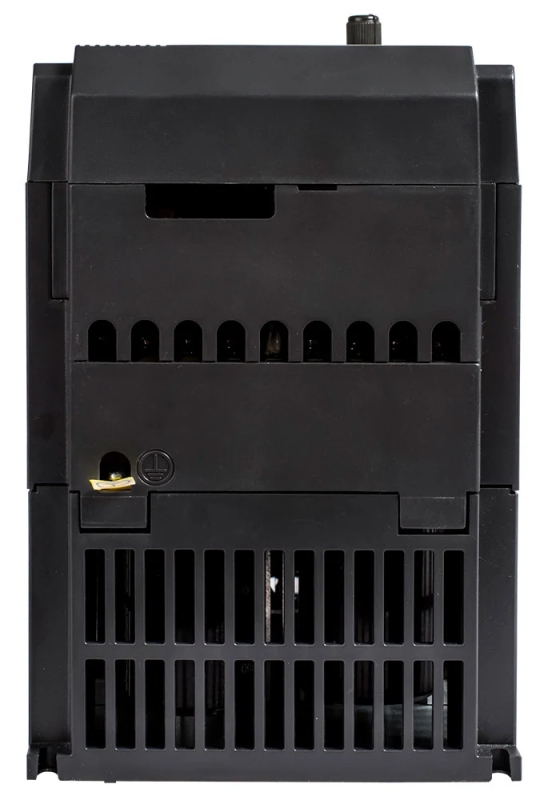

Cooling: forced-air cooling
Standards compliance: DSTU EN 61800-3, DSTU EN 61800-5-1
Disposal method: transfer to a specialised disposal company
Warranty: 12 months
