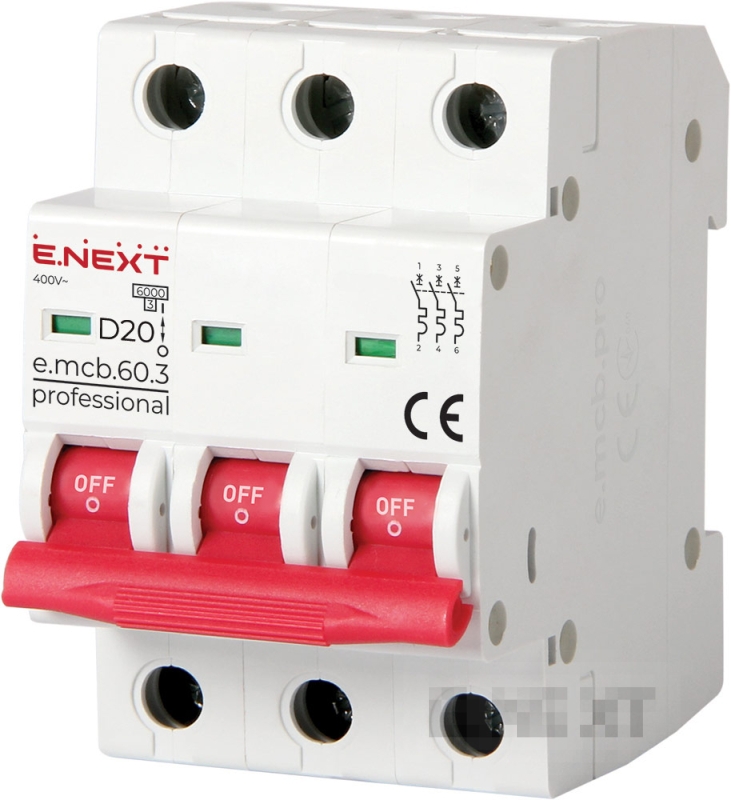

Circuit breaker E.MCB.PRO.60.3.D20, 3P, 20A, D, 6kA E.NEXT
-
Code:p0710013
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Item: p0710013
Number of poles: 3P
Rated current In: 20 A
Feature: D
Rated breaking capacity Icu: 6 kA
Rated operating voltage Ue: AC 230/400 V
Nominal DC voltage: 48 V/pole
Insulation voltage Ui: 500 V
Impulse withstand voltage Uimp: 6 kV
Nominal frequency: 50 Hz
Current type: AC
Application category: AC-22B
Current limitation class: 3
Degree of protection: IP20
Mounting: DIN rail 35 mm
Connection to FORK bus: Top and bottom
Maximum conductor cross-section: 25 mm²
Terminal tightening torque: 3 Nm
Operating temperature: -30°C to +60°C
Climate performance: UHL4
Pollution level: 2
Installation altitude: up to 2000 m
Working position: vertical or horizontal, with a deviation of up to 5°
Mechanical/electrical durability: 20,000 / 10,000 cycles
Weight: up to 300 g
Compliance with standards: DSTU EN 60898-1, DSTU EN 60947-2
Disposal method: Handover to a specialized company
Warranty: 12 months
