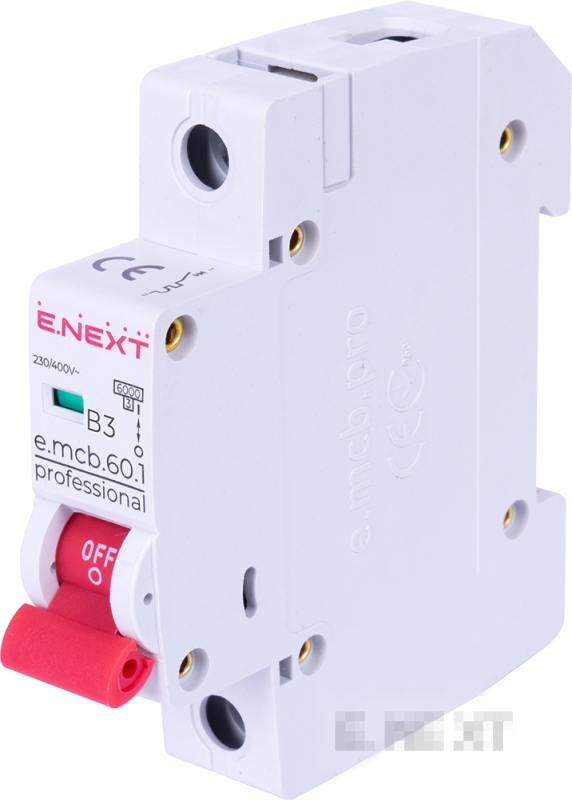

CIRCUIT BREAKER E.MCB.PRO.60.1.B3, 1P, 3A, B, 6KA E.NEXT
-
Code:p041003
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Item: p041003
Number of poles: 1P
Rated current In: 3 A
Feature: B
Rated operating voltage Ue: AC 230/400 V
Nominal DC voltage: 48 V/pole
Insulation voltage Ui: 500 V
Impulse withstand voltage Uimp: 6 kV
Rated breaking capacity Icu: 6 kA
Current limitation class: 3
Application category: AC-22B
Nominal frequency: 50 Hz
Degree of protection: IP20
Mounting: DIN rail 35 mm
Connection to FORK bus: Top and bottom
Maximum conductor cross-section: 25 mm²
Terminal tightening torque: 3 Nm
Operating temperature range: -30°C to +60°C
Pollution level: 2
Climate performance: UHL4
Installation altitude: up to 2000 m
Operating position: vertical or horizontal (up to 5° deviation)
Mechanical / electrical durability: 20,000 / 10,000 cycles
Weight: up to 100 g
Compliance with standards: DSTU EN 60898-1, DSTU EN 60947-2
Disposal method: Handover to a specialized company
Warranty: 12 months
