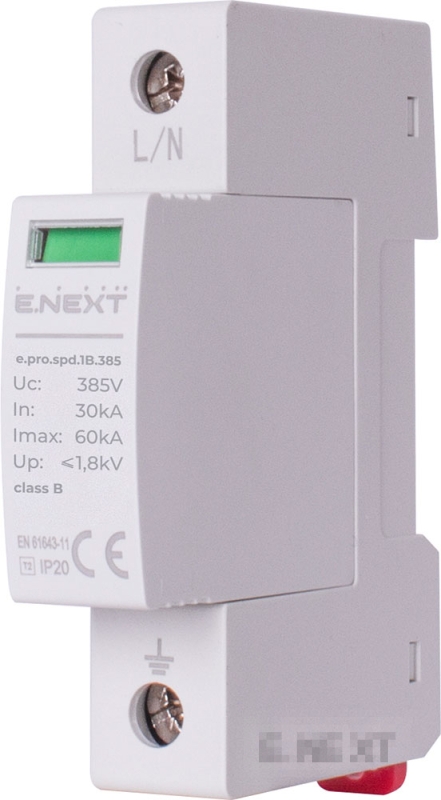

Surge protection device E.PRO.SPD.1B.385 1P (class B)
Price excl. tax:
€11.25
22.00лв.
Price inc. tax:
€13.50
26.40лв.
-
Code:p076001
The E.PRO.SPD.1B.385 1P (Class B) surge protection device is a modular SPD designed for mounting on a 35 mm DIN rail and protecting electrical circuits and equipment from dangerous surges caused by lightning or switching in the network. The device operates quickly (<25 ns) and provides effective protection, reducing the risk of damage to sensitive devices. The **E.PRO** series SPD is designed for single-phase AC systems with operating voltages up to **385 V AC** and offers an optimal balance between protection, reliability and easy installation. With a protection status indicator and a modular design, it is ideal for
domestic and commercial electrical installations.
Estimated Shipping
outside Varna starts at
€7.82
to Varna starts at
€7.82
to Varna starts at
€3.40
outside Varna starts at
€3.54
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: p076001
Type: surge protection device (SPD)
Series: E.PRO.SPD
Number of poles: 1P
Protection class: class B
Rated operating frequency: 50 Hz
Operating voltage (Uc): 385 V AC
Nominal discharge current (8/20 µs) In: 30 kA
Maximum discharge current (8/20 μs) Imax: 60 kA
Surge protection level (Up): 1.8 kV
Response time: <25 ns
Degree of protection: IP20
Cross-section of connecting wires: 2.5 – 25 mm²
Mounting: on a 35 mm DIN-rail
Operating temperature range: –40…+80 °C
Compliance with standards: DSTU EN 61643-11
Warranty: 12 months
