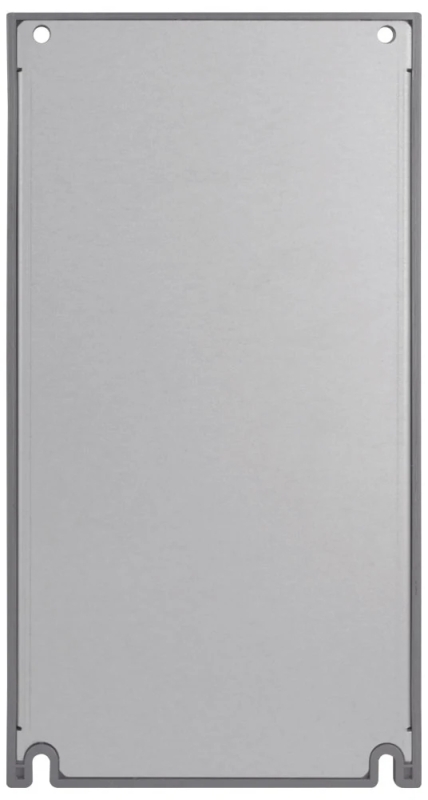

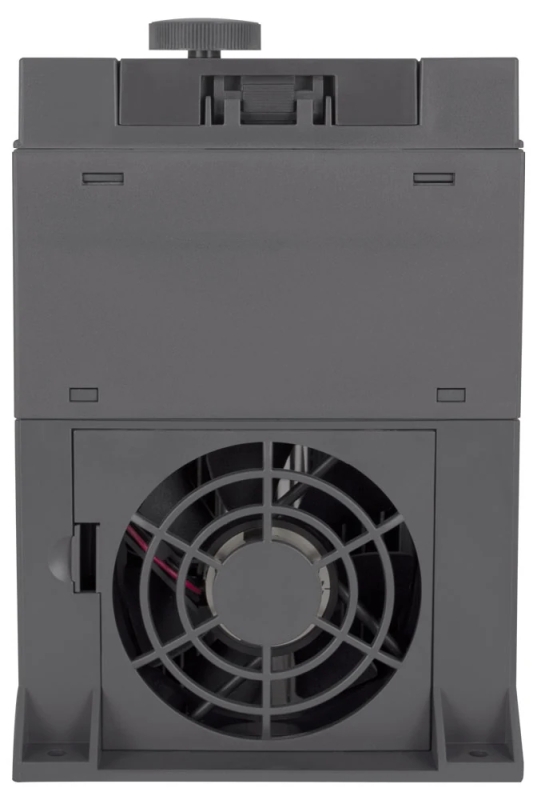

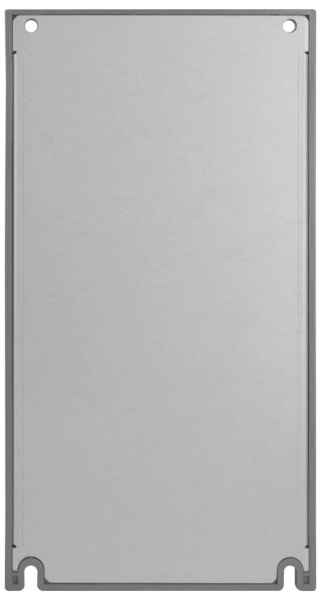

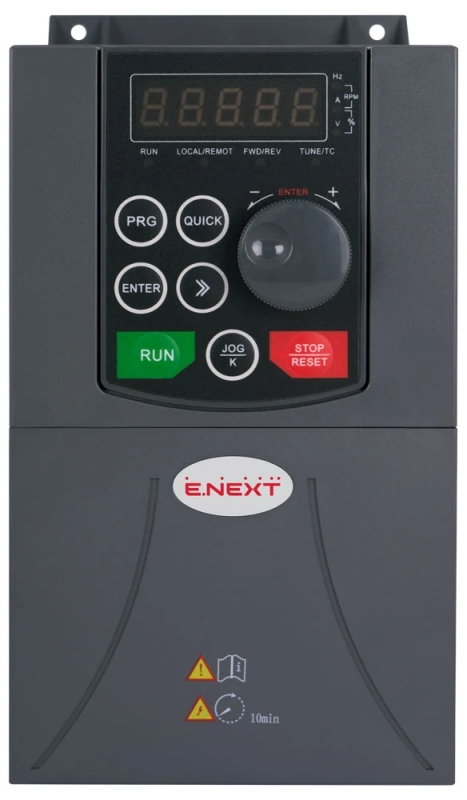

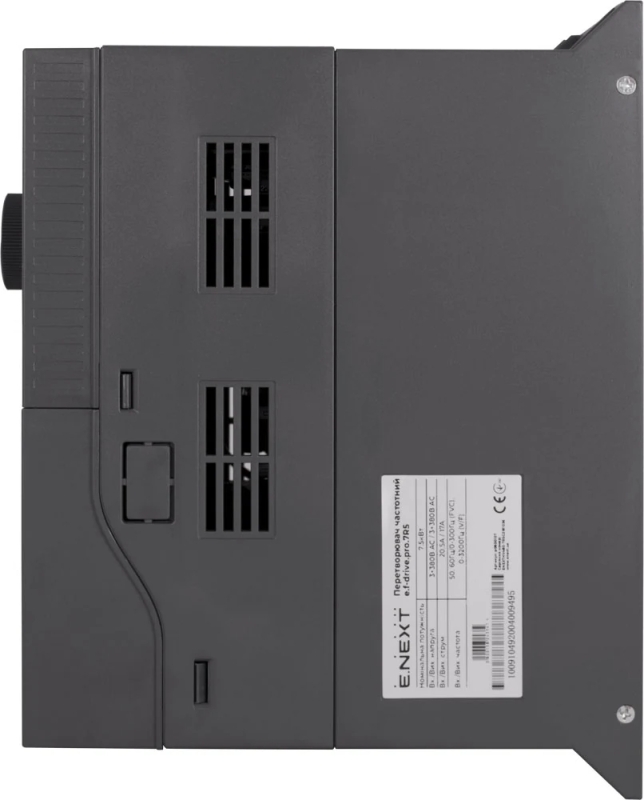

Frequency converter E.F-DRIVE.PRO.7R5, 7.5 kW, 3p, 380V E.NEXT
-
Code:p0800107
Estimated Shipping
outside Varna starts at
€12.53
to Varna starts at
€12.53
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Technical characteristics
Item: p0800107
Model: ef-drive.pro.7R5
Product type: Frequency converter
Rated power: 7.5 kW
Number of phases: 3P
Input voltage: 3×380–460 V
Output voltage: 3×380 V
Input current: 20.5 A
Output current: 17 A
Control mode: V/F / SVC
Output frequency V/F: 0–3200 Hz
SVC output frequency: 0–300 Hz
Carrier frequency: 0.5–16 kHz
Voltage tolerance: ±15%
Frequency tolerance: ±5%
Allowable voltage imbalance: ≤3%
Acceleration/deceleration time: 0–6500 s
Overload capacity: 150% for 1 min / 180% for 3 s
Communication: RS485 Modbus RTU
Command input source: Keyboard, external terminal, digital communication
Brake module: Built-in as standard
Programming panel: Included, removable
Cooling: Forced
Degree of protection: IP20
Operating temperature: –10…+55 °C
Compliance with standards: DSTU EN 61800-3, DSTU EN 61800-5-1
Disposal method: Handover to a specialized company
Warranty: 12 months
