DIN rail power supply em-power.30.12 30W, DC12V E.NEXT
Price excl. tax:
€20.71
Price inc. tax:
€24.85
-
Code:i083002
The em-power.30.12 30W, DC12V DIN-rail power supply unit is used to convert 230V AC voltage to DC voltage, compensate voltage deviation and create floating power systems using galvanic isolation.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: i083002
Overvoltage: 13.8-16.2 V
Insulation resistance I/P-O/P: 100 MΩ / 500 V
Output voltage: 10.8-13.2 V
Operating voltage range AC: 88-264 V
Power: 24 W
Impulse withstand voltage Uimp: 3 kV
Altitude above sea level: 2000 m
Current type: AC
Nominal frequency: 50 Hz
Input/output voltage: AC 220 V / DC 12 V
Max. cross-section of the connected wires, mm²: 1.5
Protection degree: IP20

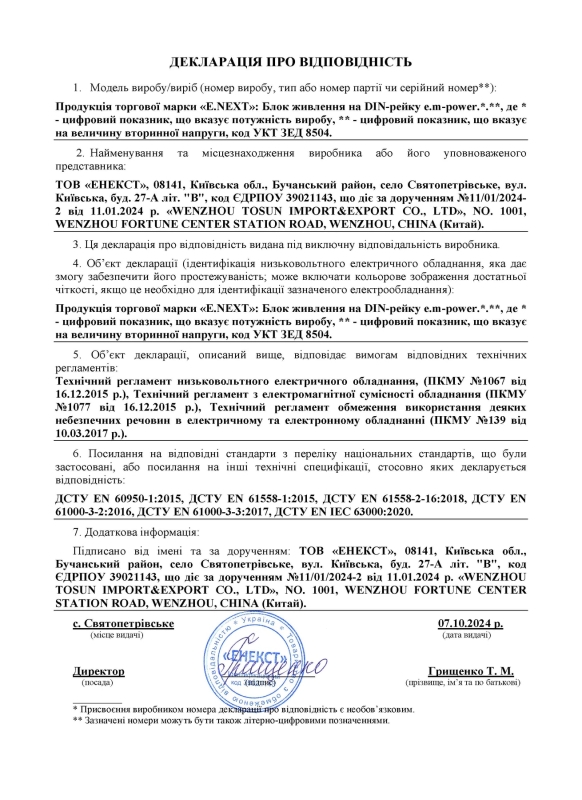

Compliance with standards: DSTU EN 60950-1
Disposal method: transfer to a specialized company
Nominal current In: 2 A
Operating temperature range: -20…+60 °C
Efficiency: 82%
Operating voltage range DC: 124-370 V
Residual ripple: 120 mV p-p
Mounting: on DIN-rail 35 mm
Operating position: vertical
Warranty: 12 months
