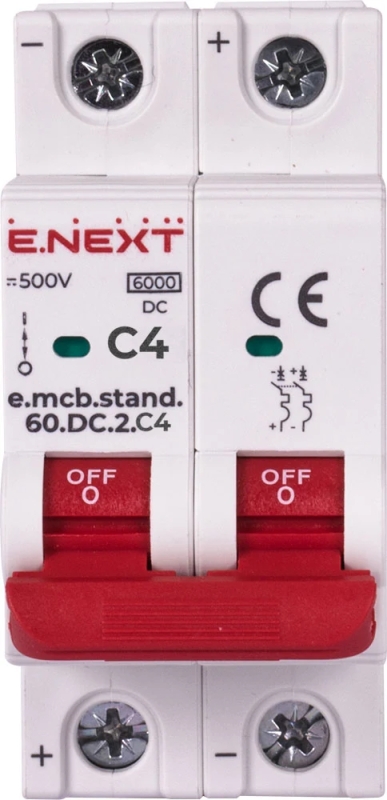

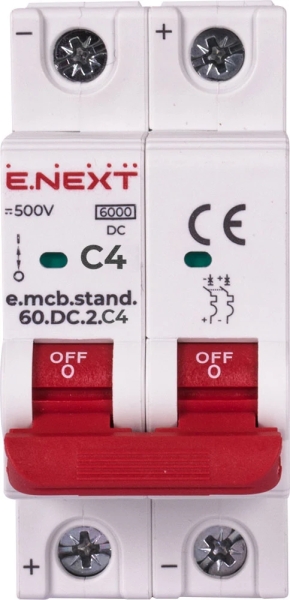

Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT

Price excl. tax: €8.44
Price inc. tax: €10.13
  • Code:
    s081016
The E.NEXT e.mcb.stand.60.DC.2.C4 DC modular circuit breaker has 2 poles, a rated current of 4 A, C tripping characteristic and 6 kA breaking capacity.

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    4 A
  • Number of poles:
    2P
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    6 kA

We have 54 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
Circuit breakers Modular equipment Protection of electrical circuits
Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT
Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT Modular circuit breaker e.mcb.stand.60.DC.2.C4, 2p, 4 A, C, 6kA, DC, E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

Technical characteristics

Article: s081016
Connection to busbar type FORK (fork): no
Number of poles: 2
Current-time characteristic: C
Rated breaking capacity Icn: 6 kA
Impulse withstand voltage Uimp: 6 kV
Application category: DC-22B
Terminal tightening torque: 2.5 Nm
Altitude above sea level: 2000 m
Insulation voltage Ui: 1200 V
Current type: DC
Rated frequency: 50 Hz
Climatic performance: UHL3, UHL4
Pollution degree: 2
Max. conductor cross-section: 25 mm²
Degree of protection (IP): IP20
Compliance with standards: DSTU EN 60947-2; EN 60898-2
Disposal method: handover to a specialized company
Rated current In: 4 A
Durability mech./el., I/O cycles: no more than 20,000 / 10,000
Operating temperature range: -40…+70 °C
Rated operating voltage Un: DC 500 V
Mounting: on DIN rail 35 mm
Operating position: vertical or horizontal (deviation no more than 5°)
Weight: ≤200 g
Warranty: 36 months
