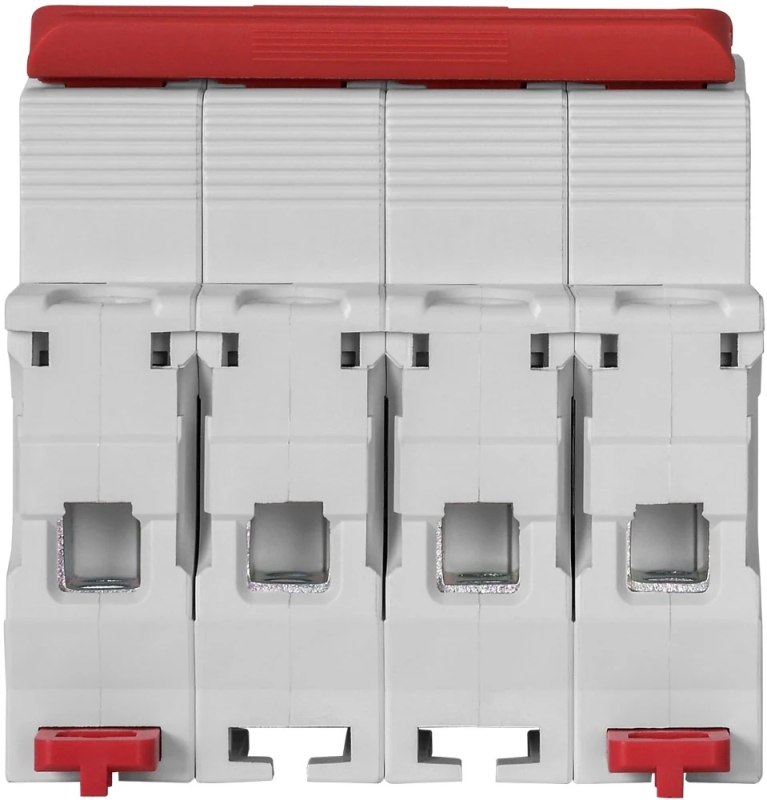

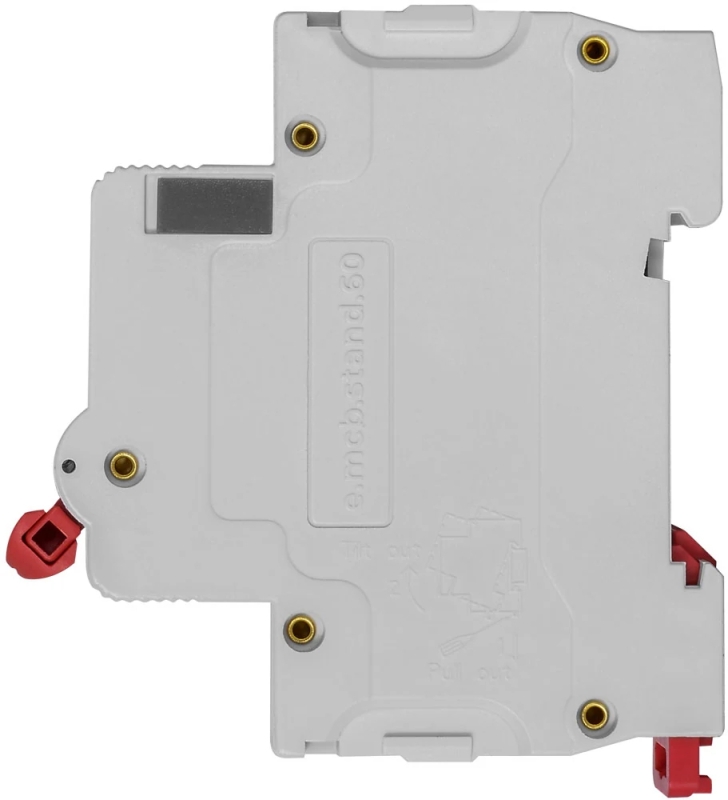

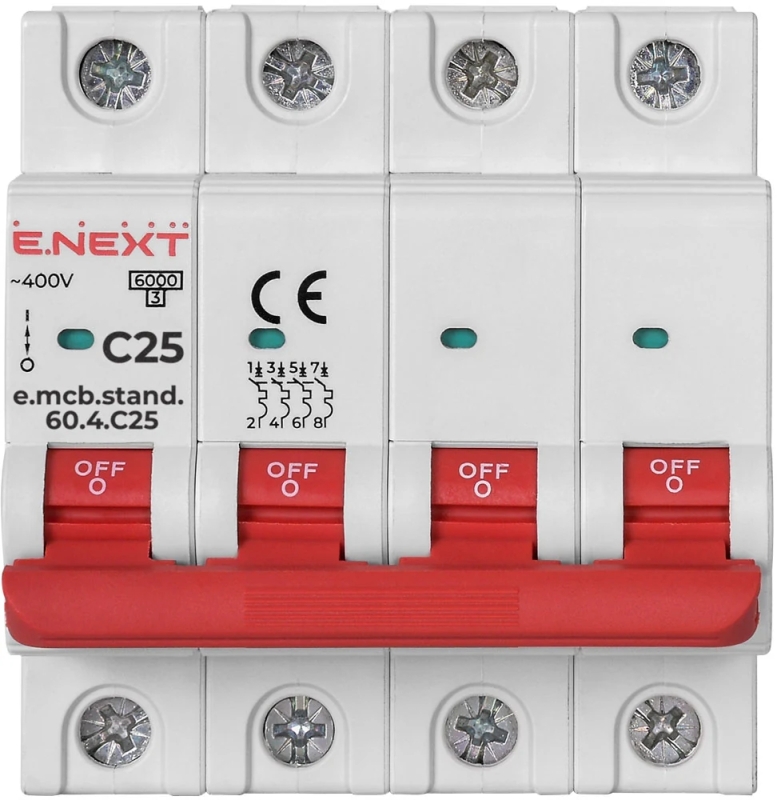

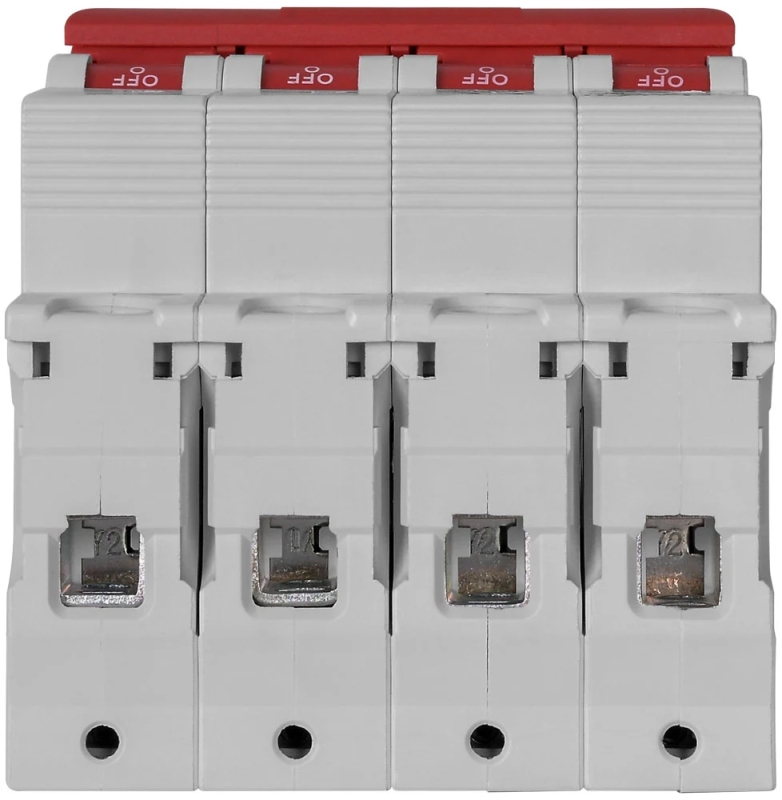

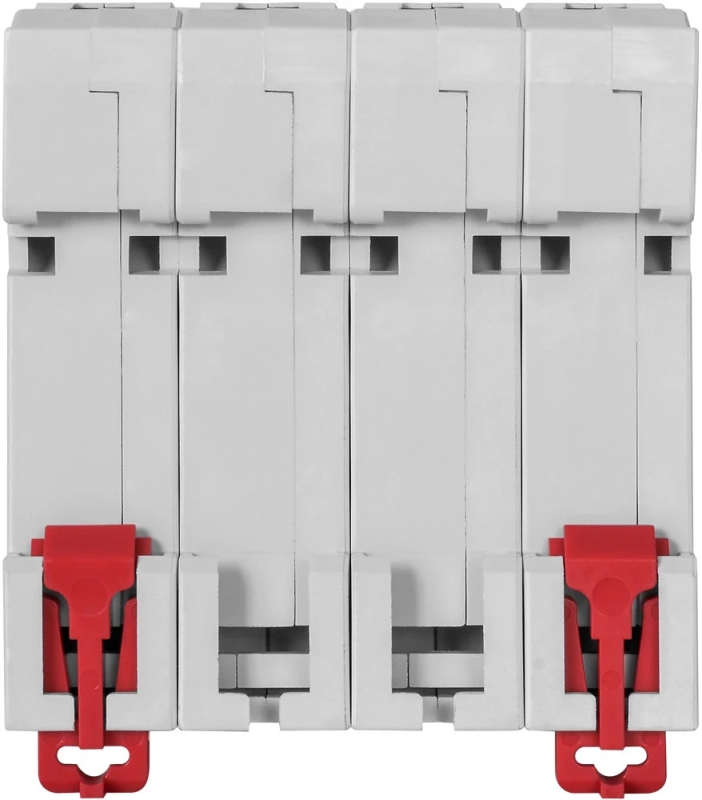

Modular circuit breaker e.mcb.stand.60.4.C25, 4p, 25A, C, 6 kA E.NEXT

Technical specifications Article: s002149 Nominal DC voltage, V/pole: 48 Connection to FORK type busbar: no Current limitation class: 3 Number of poles: 4 Current-time characteristic: C Impulse withstand voltage Uimp: 4 kV Application category: AC-22B Terminal torque: 2.5 Nm Altitude above sea level: 2000 m Insulation voltage Ui: 690 V Nominal operating voltage Ue: AC 230/400 V Current type: AC Nominal frequency: 50 Hz Climatic version: UHL4 Environmental pollution degree: 2 Max. cross-section of connected wires: 25 mm² Protection degree: IP20 Compliance with standards: DSTU EN 60898-1; EN 60947-2 Disposal method: handover to a specialized company Rated breaking capacity Icu: 6 kA Rated current In: 25 A Durability mech./el., I/O cycles: no more than 20,000 / 10,000 Operating temperature range: -40…+70 °C Mounting: on DIN-rail 35 mm Operating position: vertical or horizontal (deviation no more than 5°) Weight: ≤400 g Warranty: 36 months
