DIN RAIL POWER supply E.M-POWER.30.24 30 W, DC24 V, E.NEXT
Price excl. tax:
€28.58
Price inc. tax:
€34.30
-
Code:i083003
The E.NEXT e.m-power.30.24 DIN-rail power supply delivers 24 V DC with a rated output of 30 W for powering control and automation components.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Article: i083003
Overvoltage: 17.2–20.2 V
Insulation resistance I/P–O/P: 100 MΩ at 500 VDC
Output voltage: 21.6–26.4 V
Input AC voltage range: 88–264 V
Power: 36 W
Impulse withstand voltage Uimp: 3 kV
Altitude above sea level: 2000 m
Current type: AC
Rated frequency: 50 Hz
Input/output: AC 220 V / DC 24 V
Max. cross-section of the connected wires: 1.5 mm²
Degree of protection (IP): IP20

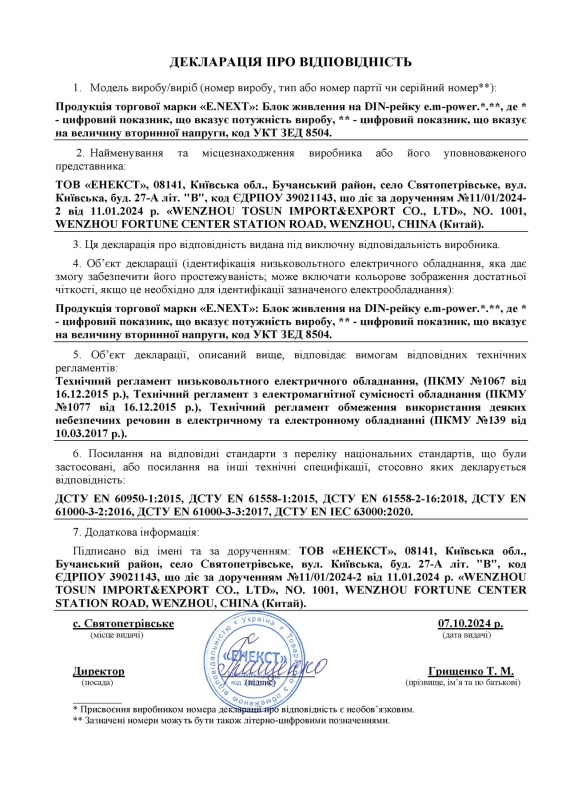

Compliance with standards: DSTU EN 60950-1
Disposal method: transfer to a specialized company
Rated current In: 1.5 A
Operating temperature range: –20…+60 °C
Efficiency: 84%
Input DC voltage range: 124–370 V
Residual ripple: 150 mV (p-p)
Mounting: on DIN-rail 35 mm
Operating position: vertical
Warranty: 12 months
