MODULAR CIRCUIT BREAKER E.MCB.PRO.60.1N.С20.THIN, 1P+N, 20A, C, 4.5KA E.NEXT

Price excl. tax: €2.86
Price inc. tax: €3.43
  • Code:
    p055002

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    20 A
  • Number of poles:
    1P+N
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    4.5 kA

We have 276 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
MODULAR CIRCUIT BREAKER E.MCB.PRO.60.1N.С20.THIN, 1P+N, 20A, C, 4.5KA E.NEXT
MODULAR CIRCUIT BREAKER E.MCB.PRO.60.1N.С20.THIN, 1P+N, 20A, C, 4.5KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.PRO.60.1N.С20.THIN, 1P+N, 20A, C, 4.5KA E.NEXT
Send to friend
Rate this product
Compare
Compliance Information

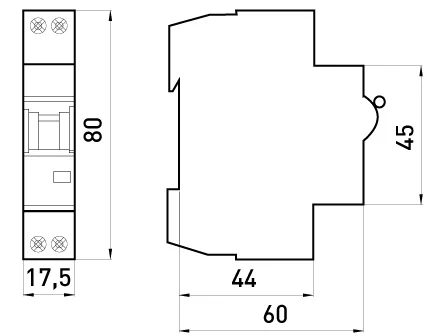

Technical specifications Article: p055002 Series: e.mcb.pro (thin) Number of poles: 2P (1P+N) Tripping characteristic: C Rated current In: 20 A Rated operating voltage Ue: AC 230 V Limited breaking capacity Icu: 4.5 kA Degree of protection: IP20 Connected conductor cross-section: up to 10 mm² Mechanical wear resistance: 10,000 cycles Operating temperature range: −25…+40 °C Dimensions (H×W×D): 80 × 17.5 × 60 mm Space occupied: 1 module (17.5 mm) Service life: 5 years Warranty period: 12 months Origin: Poland Compliance with standards: DSTU EN 60898-1; DSTU EN 60947-2 Impulse withstand voltage Uimp: 6 kV.
