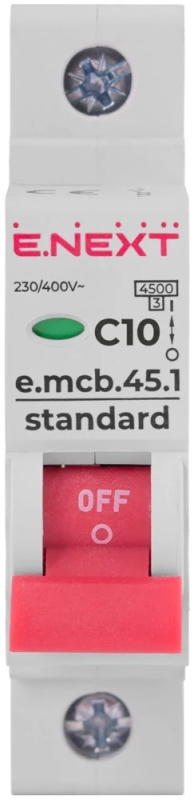

MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT

Price excl. tax: €1.84
Price inc. tax: €2.21
  • Code:
    s002007

Estimated Shipping

outside Varna starts at €10.43 to Varna starts at €10.43
to Varna starts at €4.83 outside Varna starts at €5.02
  • Rated current [A]:
    10 A
  • Number of poles:
    1P
  • Shutdown curve:
    C
  • Breaking capacity [kA]:
    4.5 kA

We have 944 in stock

- +

Quick Buy

Just 4 fields to fill in
We will contact you to finalize the order
MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT
MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT MODULAR CIRCUIT BREAKER E.MCB.STAND.45.1.C10, 1P, 10A, C, 4.5 KA E.NEXT
Send to friend
Rate this product
Compare
Compliance Information
Technical specifications Article: s002007 Connection to comb-busbar (FORK): no Current limitation class: 3 Poles: 1 Curve: C Uimp: 6 kV Category: AC-22B Tightening: 3 Nm Altitude: ≤2000 m Ui: 500 V | Ue: AC 230/400 V | 50 Hz | AC UHL4 | Pollution degree: 2 Max. cross-section: 25 mm² IP20 Standards: DSTU EN 60898-1; EN 60947-2 Icu: 4.5 kA In: 10 A Endurance (mech./el.): ≥10 000 / ≥4 000 Temp. range: −30…+60 °C DIN-rail 35 mm Operating position: vertical/horizontal (≤5°) Weight: ≤100 g Warranty: 12 months
