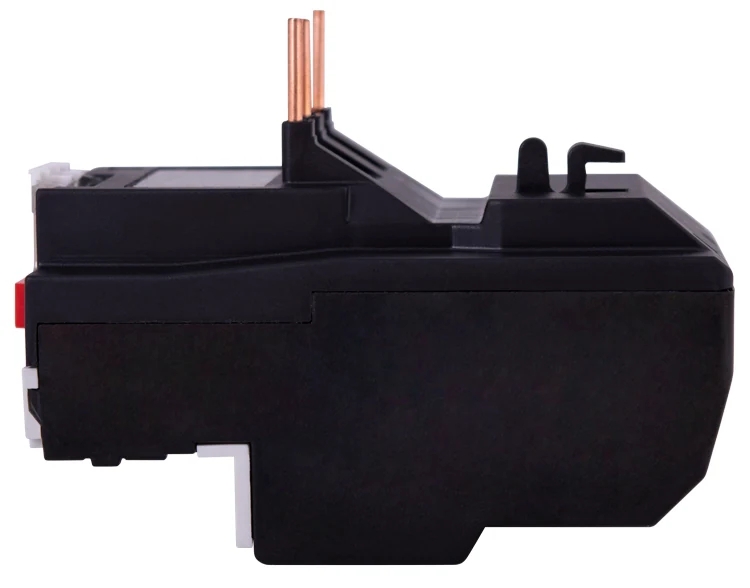

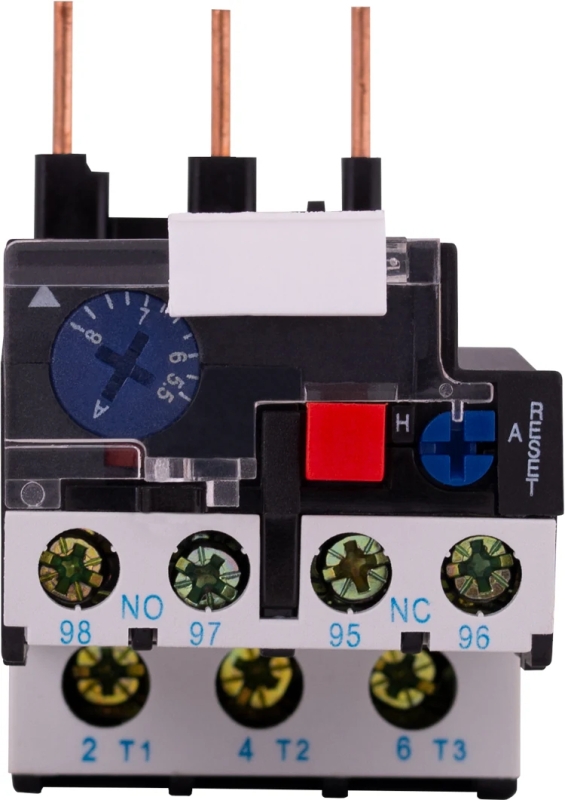

THERMAL PROTECTION RELAY E.PRO.UKH.1.2,0.1-2, DIAP. 1.2-2.0 A E.NEXT
Price excl. tax:
€7.93
Price inc. tax:
€9.52
-
Code:p058007
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p058007
Number of poles: 3
Size (max. current for this size): 25 A
Range of operating current setting: 1.2–2.0 A
Impulse withstand voltage Uimp: 6 kV
Type and number of additional contacts: 1NO+1NC
Terminal tightening torque: 1.2 Nm
Altitude above sea level: 2000 m
Insulation voltage Ui: 690 V
Rated operating voltage Ue: AC 400/690 V
Current type: AC
Rated frequency: 50 Hz
Environmental pollution degree: 3
Size: 1
Max. cross-section of the connected wires: 1 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60947-4-1
Disposal method: transfer to a specialized company
Operating temperature range: -25…+40 °C
Mounting: to contactor series e.pro.ukc, size 1 and 2
Operating position: vertical and horizontal, with a deviation of no more than 30°
Warranty: 12 months
