REMOTE CONTROL, WITH 4 BUTTONS E.CS.STAND.XAC.A.481, 4NO+ 4NC E.NEXT
Price excl. tax:
€25.54
Price inc. tax:
€30.65
-
Code:s007009

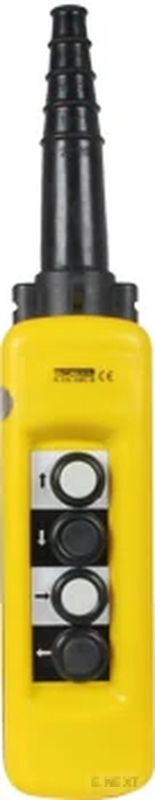

The 4-button hoist control panel E.CS.STAND.XAC.A.481, 4NO+ 4NC is designed for remote control of lifting equipment, hoists and electric drives.
Estimated Shipping
outside Varna starts at
€10.43
to Varna starts at
€10.43
to Varna starts at
€4.83
outside Varna starts at
€5.02
Quick Buy
Just 4 fields to fill in
Technical characteristics
Item: s007009
Switching overvoltage Uk: 500 V
Impulse withstand voltage Uimp: 4 kV
Number of buttons: 4
Altitude above sea level: 2000 m
Insulation voltage Ui: 500 V
Current type: AC
Nominal frequency: 50 Hz
Environmental pollution level: 3
Max. cross-section of connected wires, mm²: 0.5–2.5
Protection level: IP65
Compliance with standards: DSTU EN 60947-1; EN 60947-5-1
Disposal method: handover to a specialized company
Mech./el. durability, cycles: ≤1 000 000 / 300 000
Contacts: 4 NO + 4 NC
Operating temperature range: -25…+45 °C
Rated operating voltage Un: AC 120, 230, 400 V
Rated conditional thermal current Ith: 10 A
Working position: arbitrary
Warranty: 12 months.
