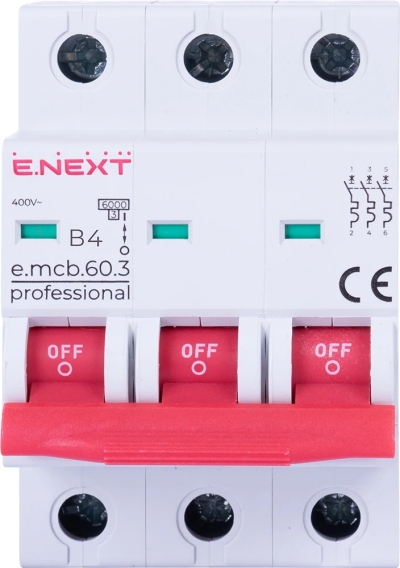

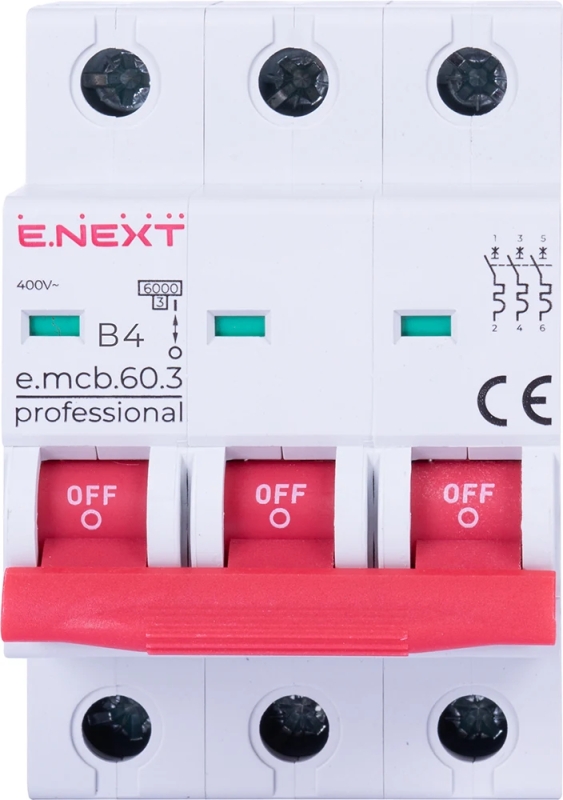

MODULAR CIRCUIT BREAKER E.MCB.PRO.60.3.B 6 NEW, 3P, 4A, IN, 6KA, NEW E.NEXT

Technical specifications Article: p041038 Nominal voltage DC, V/pole: 48 Connection to busbar type FORK (fork): top and bottom Current limiting class: 3 Number of poles: 3 Time-current characteristic: V Impulse withstand voltage Uimp: 6 kV Application category: AC-22B Terminal tightening torque: 3 N m Altitude above sea level: ≤2000 m Insulation voltage Ui: 500 V Nominal operating voltage Ue: AC 230/400 V Current type: AC Nominal frequency: 50 Hz Climatic version: UHL4 Pollution degree: 2 Max. conductor cross-section: 25 mm² Protection degree: IP20 Compliance with standards: DSTU EN 60898-1; EN 60947-2 Disposal method: handover to a specialized company Limited breaking capacity Icu: 6 kA Rated current In: 4 A Wear resistance mech./el.: ≤20 000 / 10 000 cycles Operating temperature range: −30…+60 °C Mounting: on DIN-rail 35 mm Operating position: vertical/horizontal, deviation ≤5° Weight: ≤300 g Warranty: 12 months
