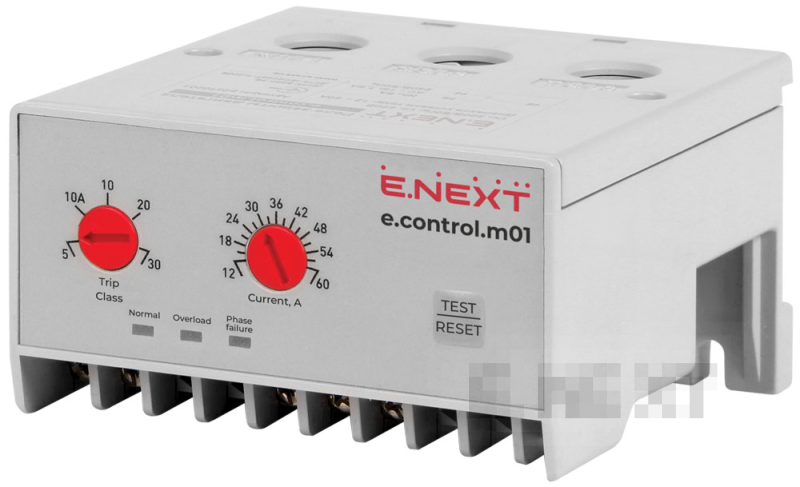

Motor protection relay e.control.m01, 12–60A
Price excl. tax:
€16.95
Price inc. tax:
€24.92
-
Code:p0690001
The e.control.m01 motor protection relay is designed for reliable protection of electric motors against overload, phase loss and phase imbalance. It is suitable for industrial and commercial applications, providing safe power interruption under critical conditions in the current range from 12 to 60 amps.
Quick Buy
Just 4 fields to fill in
Technical specifications (Технични характеристики):
Device type: Motor protection relay
Current setting range: 12–60 A
Operating voltage: 690 V
Number of poles: 3
Mounting: DIN rail
Protection degree: IP20
Operating temperature range: from -20°C to +60°C
Protection functions:
Overload protection
Phase loss protection
Phase asymmetry protection
Reset type: Manual and automatic
Indication: Built-in mechanical trip indication
Device type: Motor protection relay
Current setting range: 12–60 A
Operating voltage: 690 V
Number of poles: 3
Mounting: DIN rail
Protection degree: IP20
Operating temperature range: from -20°C to +60°C
Protection functions:
Overload protection
Phase loss protection
Phase asymmetry protection
Reset type: Manual and automatic
Indication: Built-in mechanical trip indication
