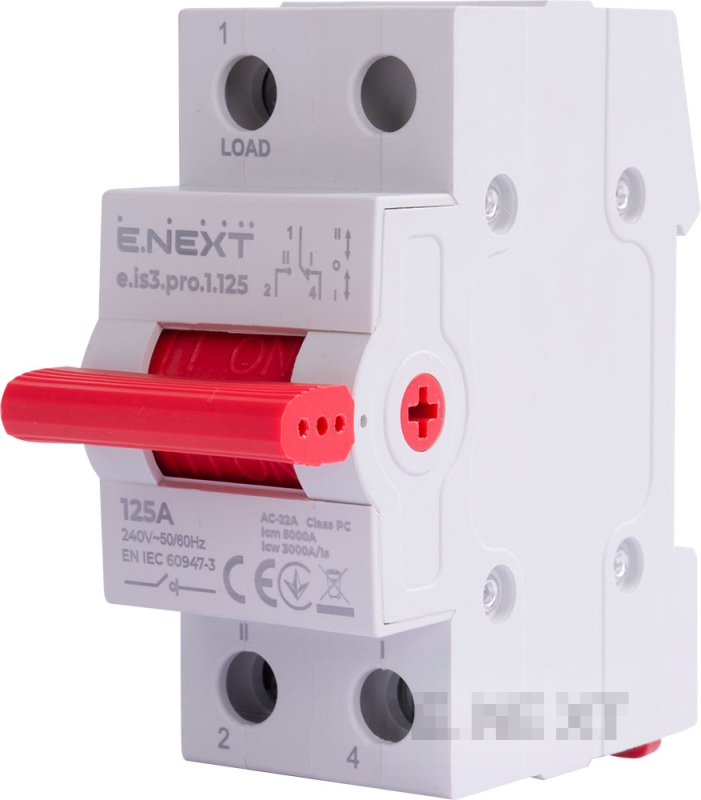

Three-position load switch e.is3.pro.1.125, 1p, 125A E.NEXT
Price excl. tax:
€16.21
31.70лв.
Price inc. tax:
€19.45
38.04лв.
-
Code:p008029
The e.is3.pro.1.125, 1p, 125A three-position DIN-rail switch is designed for switching electrical circuits, switching phases, reversing motors, manually switching in standby mode, etc. The product is used in networks protected against short-circuit and overload currents.
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p008029
Number of poles: 1
Impulse withstand voltage (Uimp): 4kV
Application category: AC-22B
Tightening force of contact terminals: 6Nm
Altitude above sea level: 2000m
Insulation voltage (Ui): 500V
Rated operating voltage (Ue): AC 230V
Current type: AC
Rated frequency: 50Hz
Maximum cross-section of connecting wires: 60mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60947-3
Disposal method: Handover to a specialized company
Switch position: 1-0-2
Rated current (In): 125A
Rated short-term withstand overload current (Icw): 24In
Wear resistance (mechanical/electrical): <30000 / 10000 cycles
Operating temperature range: –5…+40°C
Mounting: On DIN rail 35mm
Operating position: Vertical or horizontal (deviation up to 5°)
Weight: no more than 150g
Warranty: 12 months
