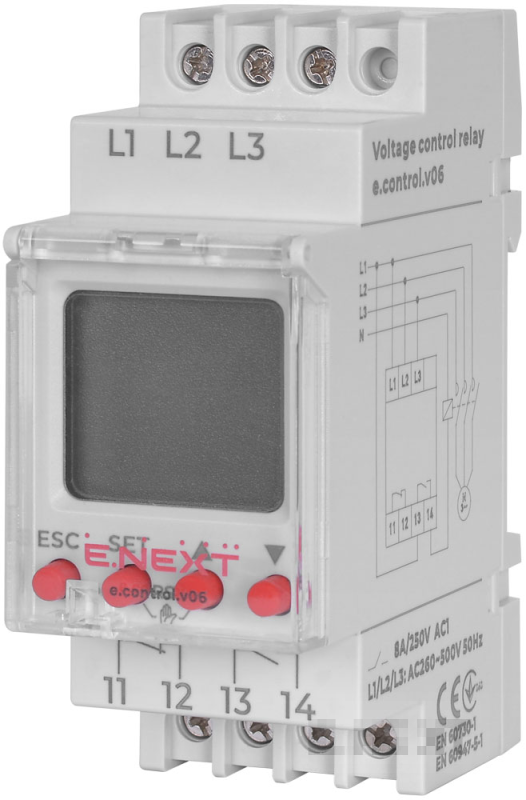

THREE-PHASE VOLTAGE CONTROL RELAY, DIGITAL E.CONTROL.V06 E.NEXT
Price excl. tax:
€41.19
80.56лв.
Price inc. tax:
€49.42
96.66лв.
-
Code:p0690011
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p0690011
Length (L): 65 mm
Height (H): 90 mm
Width (W): 36 mm
Terminal tightening torque: 0.5 Nm
Rated operating voltage Ue: 380 V
Current type: AC
Rated frequency: 50/60 Hz
Pollution degree: 3
Max. cross-section of connected wires: 4 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60947-5-1; EN 60730-1
Durability mech./el.: not less than 1 000 000 / 100 000 cycles
Hysteresis: 6 V
Contacts: 1NC + 1NO
Operating temperature range: −20…+55 °C
Mounting: on DIN rail 35 mm
Voltage range — upper limit (V on): 381–500 V
Altitude above sea level: not more than 2000 m
Voltage range — lower limit (V on): 260–379 V
Delay on switching on: 0.1–30 s
Characteristics: phase imbalance adjustment (asymmetry) — 5–20 % (V on); delay on switching off in case of asymmetry: 0.1–20 s
Operating position: arbitrary
Warranty: 12 months
