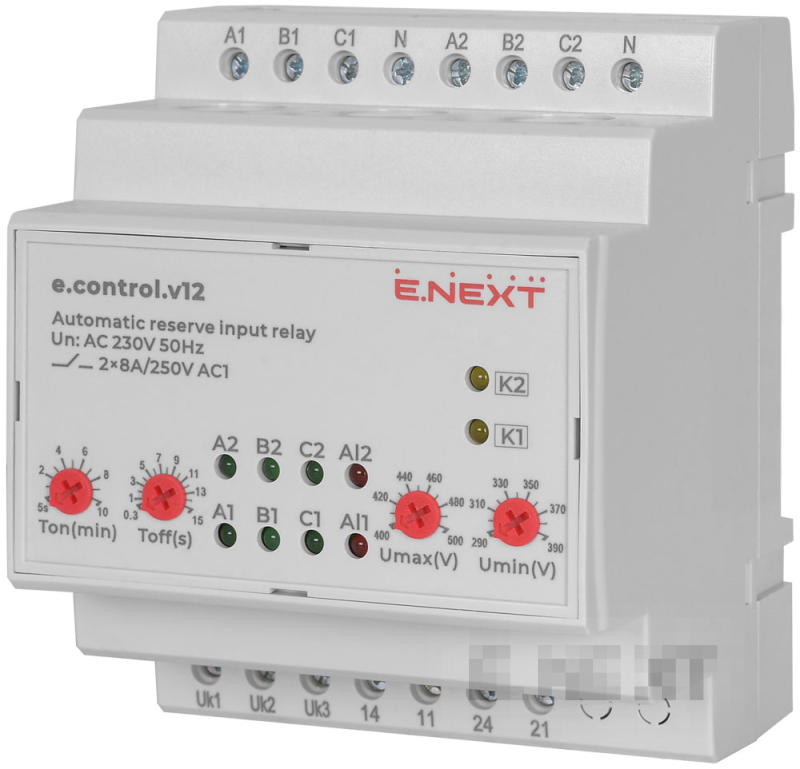

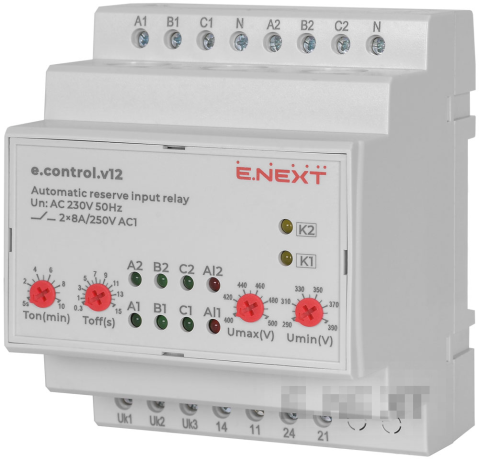

AUTOMATIC LOAD TRANSFER RELAY E.CONTROL.V12 E.NEXT
Price excl. tax:
€34.77
68.00лв.
Price inc. tax:
€41.72
81.60лв.
-
Code:p0690022
Estimated Shipping
outside Varna starts at
€3.88
to Varna starts at
€3.88
to Varna starts at
€2.74
outside Varna starts at
€2.85
Quick Buy
Just 4 fields to fill in
Technical specifications
Article: p0690022
Length (L): 60 mm
Height (H): 90 mm
Width (W): 75 mm
Rated operating voltage Ue: AC 380 V
Current type: AC
Rated frequency: 50/60 Hz
Pollution degree: 3
Max. cross-section of connected wires: 2.5 mm²
Protection degree: IP20
Compliance with standards: DSTU EN 60947-5-1; EN 60730-1
Durability mech./el.: not less than 1 000 000 / 100 000 cycles
Hysteresis: 5 V
Operating temperature range: −25…+50 °C
Mounting: on DIN rail 35 mm
Range — upper limit: 400–500 V
Altitude above sea level: not more than 2000 m
Range — lower limit: 290–390 V
Delay on switching on: 5 s – 10 min
Characteristics: measurement error ≤ 1 % (of the upper limit); permissible voltage asymmetry: 80 V
Operating position: arbitrary
Warranty: 12 months
